Multifunkční tribometr MFT-2000

MULTIFUNKČNÍ TRIBOMETR MTF-2000

Všestranný modulární univerzální tribometr

BROŽURY, VIDEA

A modular compact tribometer for essential friction, wear and mechanical properties analysis.

POPIS PŘÍSTROJE:

• Servo control down force control
• Up to 1000 °C
• Modular with both linear and rotary motions
• Wide load range mN to 100N*
• Inline Inspection with an integrated 3D profilometer

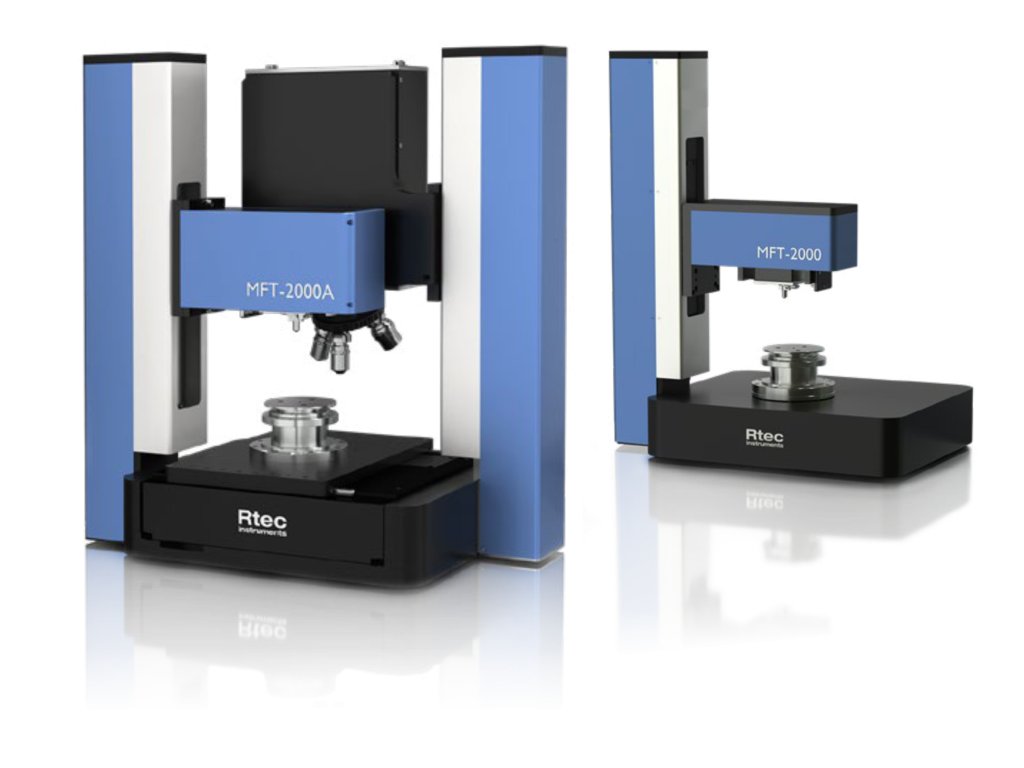

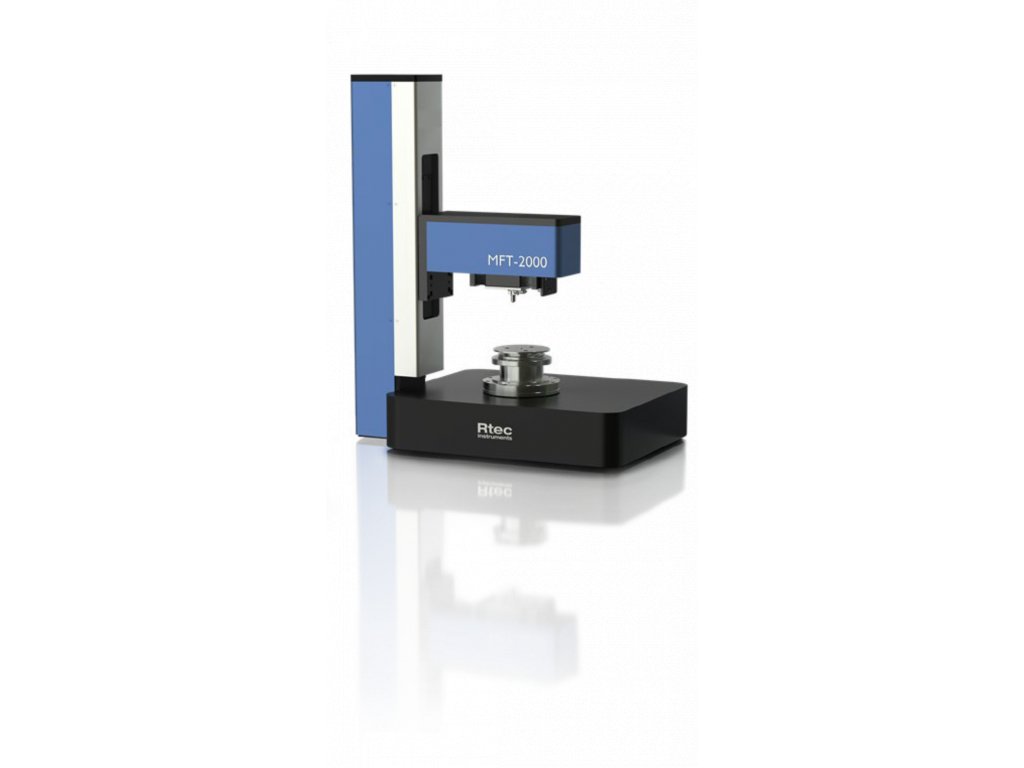

Multi Function Tribometer MFT-2000 is a versatile and technologically advanced bench top tribometer for essential mechanical, scratch, and tribological characterization. An open platform architecture design for multiple configurations and ease of use. Fully automated test programs and advanced controllers allow for high repeatability and precision measurements. The servo control load patented multi-dimension force sensors and XY stage allows the MFT-2000 tribometer to run several tests covering scratch, tribology, wear, mechanical tests, and profilometry on the same platform.

(* Depends on configuration)

A COMPACT TRIBOMETER LIKE NO OTHER

A customizable bench top tribometer for comprehensive pin on plate and pin on disk analysis.

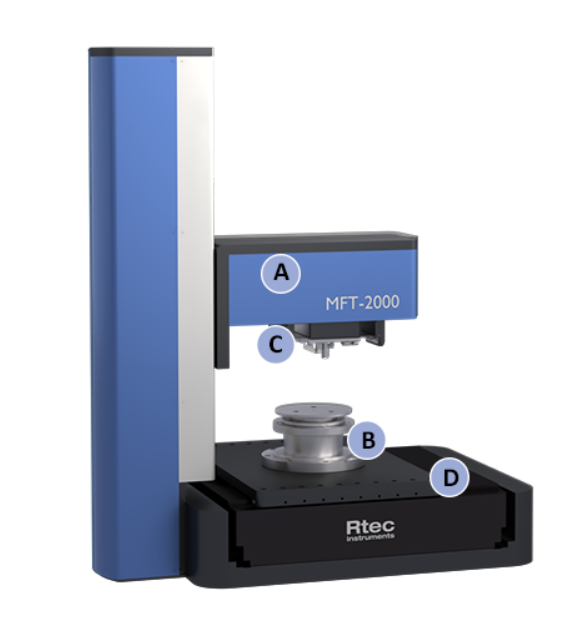

Modular Platform Open platform designed for ease of use and easy access.   Lower Interchangeable Test Module   Interchangeable fast-exchange test modules perform several tests on same platform – rotary, reciprocating.

Force Sensor   Various two dimension high resolution real time friction and down force sensors up to 100 N.      XY Stage High precision  linear XY stage to change test radius automatically and allows for integrated 3d profilometer

INTERCHANGEABLE MODULES

Multiple modules are available for the XY stage:

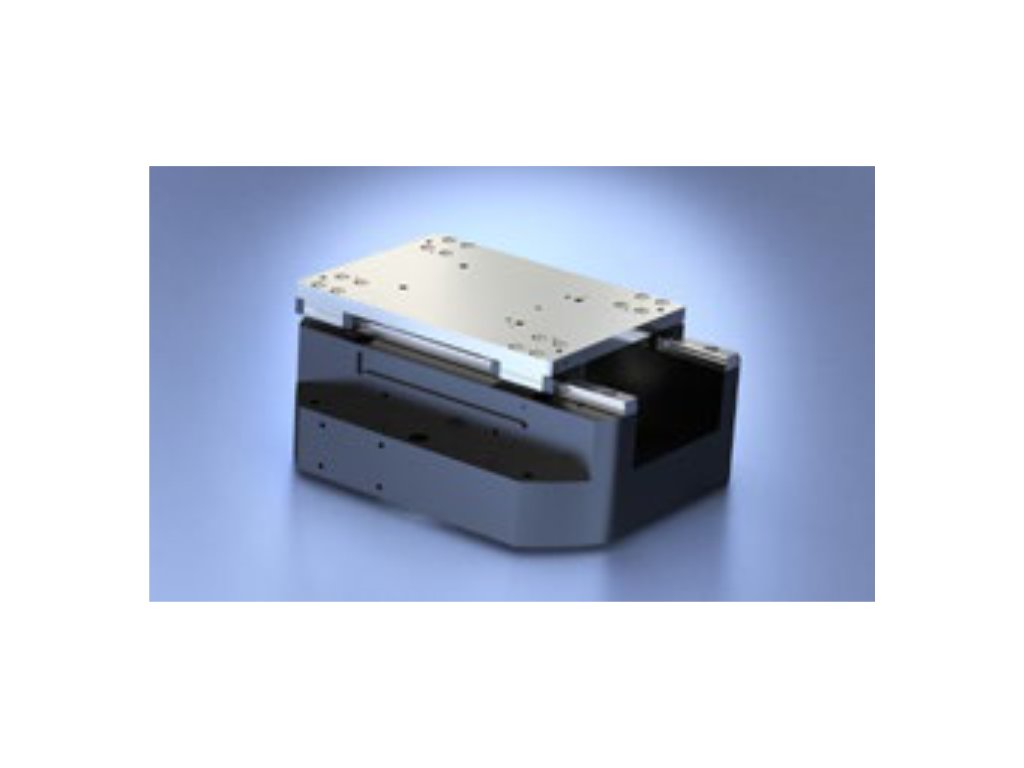

Rotary Drive	Reciprocating Drive
Pin on disk tribometer, ball on disk tribometer etc. up to 5000 RPM	Linear reciprocating tribometer wear, pin on plate etc.

MTF-2000 TRIBOMETER FEATURES

Wide range allows the tribometer to run several standard and non standard tests on the same platform.
Down Force Control   Real time force control during the test. The test can run at constant or changing load.   Temperature Control   Up to 1000 °C temperature chambers. Close loop temperature control during the test.   Sensors   2 dimensional patented sensors to produce repeated data at high resolution.	In-line Inspection   Patented inline 3D optical profilometer to look at surface change vs time or test with nm resolution   Software   Comes with our widely used operation and data analysis package software.   Rotary and Linear Modes   Easy to move between rotary and linear modules using fast exchange mechanism.
