Popis

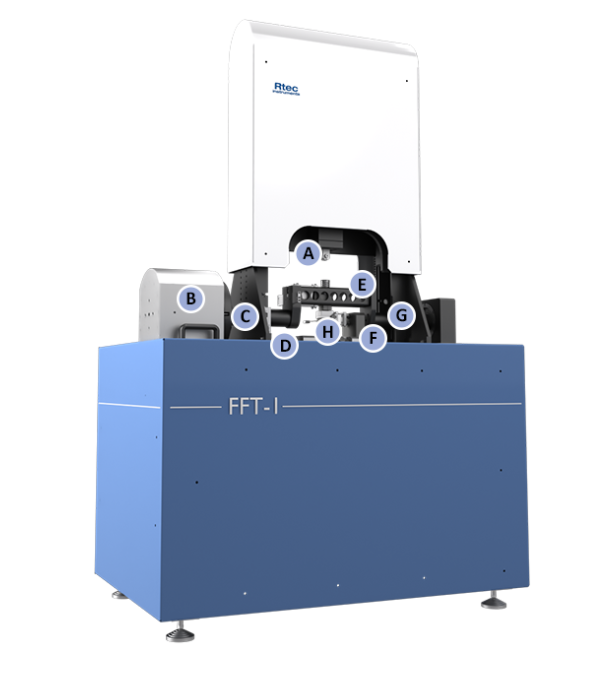

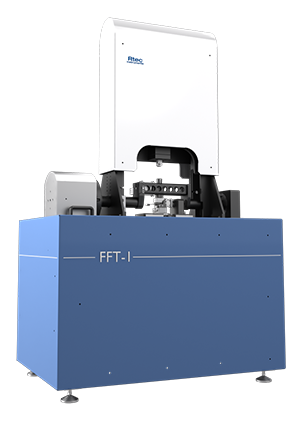

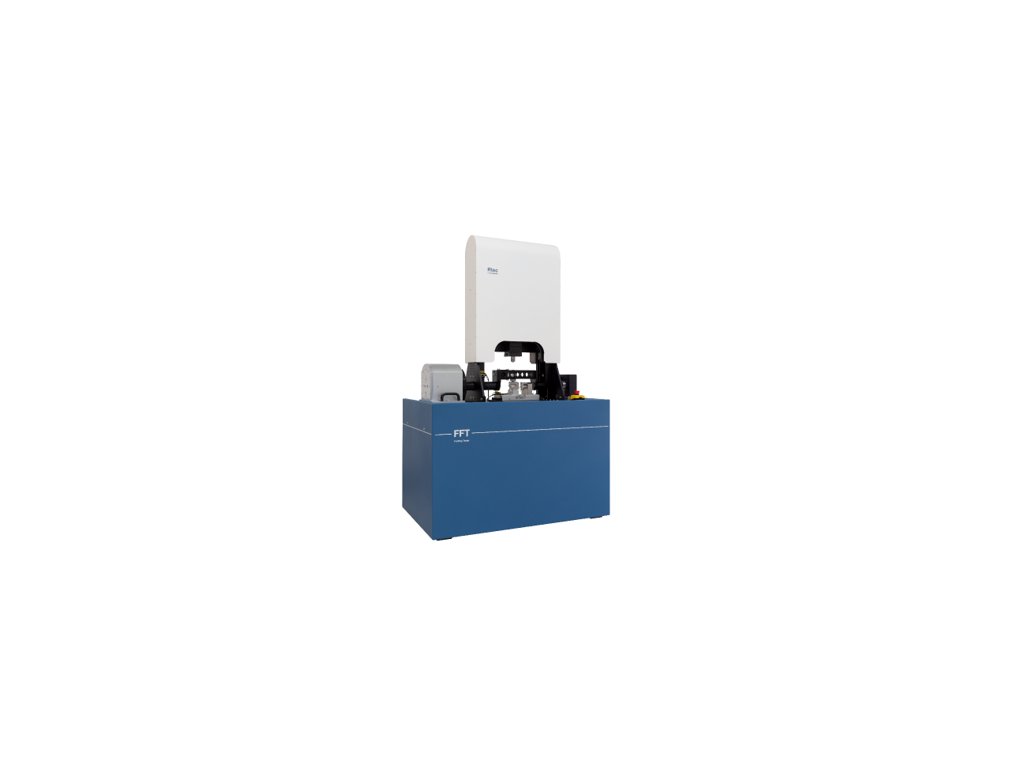

FRETTING TESTERY - řada FFT-1
Zkoušky koroze třením
- Koroze třením
- Vysokofrekvenční korozní tření
- Tření a opotřebení
 |
Tester SRVNext generation SRV Testing Machine designed to test lubricant, grease, additives, and materials in high-frequency linear oscillation motion. |
POPIS PŘÍSTROJE:
- Real-time down force control
- 1 to 200 Hz, 10 µm to 2.8 mm
- Real time friction with piezo load sensors
- Room to 180 °C (cooling and up to 400°C options available)
- Load Range up to 20N (More ranges available)

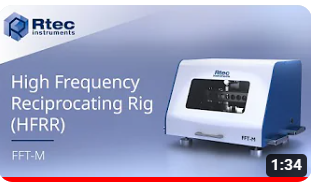

Evaluate fuel lubricity, predict the performance of additives, and study friction wear with our HFRR high frequency reciprocating rig. This next generation Rtec Instruments HFRR testing machine contains programmable force control (no dead weights). Combined with piezo sensors to measure real-time friction. The ease of use, flexure based design makes this tester highly reliable and repeatable. Test collected samples from field or for research purpose. The FFT-M provides a fully automated and computer controlled test. Setup is easy to calibrate and comes with standard oil and samples. Each tester conforms to several ASTM standards including the most widely used ASTM D6079. In addition to standard testing, the wide stroke, frequency, and load range allows development of new custom test methods. Perfect for understanding next generation fuel additives.
a fretting machine like no other
Test the surface damage that occurs between two contacting surfaces. Analyze two-body abrasion, adhesion, and/or fretting fatigue wear.
|
|
 Unmatched Waveform ControlWithout the friction of rolling or bearing, the magnetic flexure based design provides the control required for the most sensitive of tests. The unique controller adjusts to friction changes to maintain the stroke control in real-time.  Friction MeasurementThe fretting tester comes with high frequency piezo sensors to measure real-time friction. Ultra low noise amplifiers aids in detection of minute changes in friction with ease.  Additional In-line SensorsSensors such as acoustic emission to detect onset of cracks, and ECR to measure surface resistance changes to gain more insight on the material interface.
 Liquid Containers, Sample HolderCustomizable liquid and sample holders for standard and non standard tests. |
FEATURES
|
Next Generation With stroke control from 10 µm, the Rtec Instruments SRV tester simulates many test conditions that are not possible using any other commercially available tester.
|
Calibrated friction force sensors to NIST traceable standards. This ensures correct absolute friction values.6-1
Vibration dampening frame, symmetrical design, and rigid samples holders yield a high system stiffness. This high rigidity facilitates the high repeatability of data and wear marks with ease. |
Standard Test Method for Evaluating Lubricity of Diesel Fuels by the High-Frequency Reciprocating Rig (HFRR) by Visual Observation.
|
Data and Analysis
FFT series fretting wear testing instruments are optimize for friction, wear, and fretting fatigue tests at small amplitude and high frequency.
 |
 |
 |

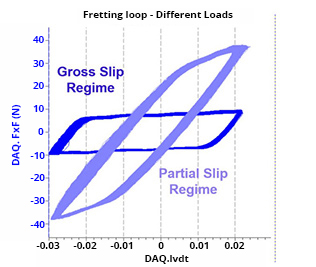

Fretting Loops |

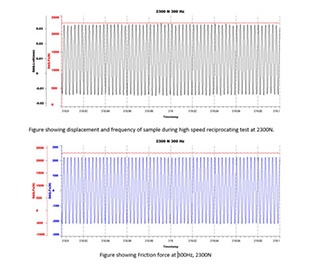

Real Time Friction Curves at 300 Hz, 3000 N |

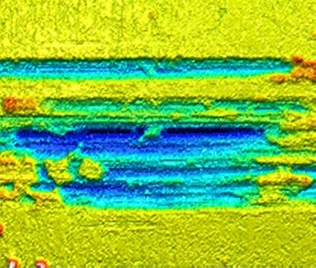

Fretting Failure Marks |
|
Rigid design with accurate real-time friction force allows the measure of fretting loops at different temperatures, and loads. |
The graph shows real-time friction data at 300 Hz, 2300 N test on dry material fretting test. |
Rtec 3D profilometer allows to create 3D images of surfaces with ease. |
Data and Analysis
 |
 |
 |
|

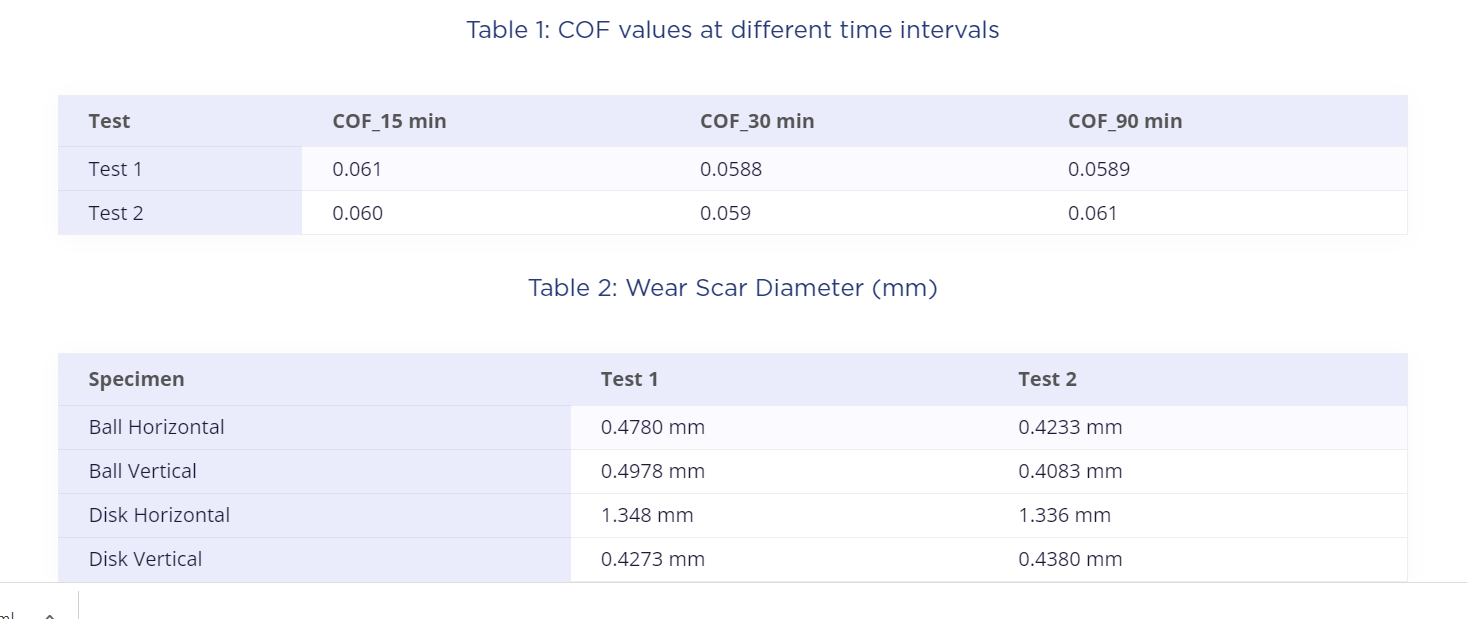

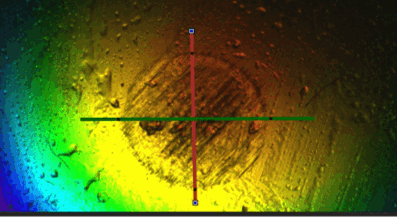

Ball Wear Mark and Volume Wear
|

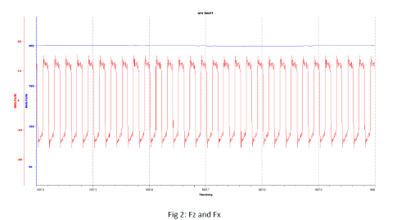

Real Time Friction and Downforce |

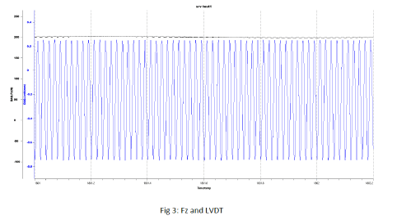

Real Time Stroke Control |
| 3D wear mark of ball surface after the test. | Real-time friction and downforce data | Real-time downforce and stroke control. |
Several Applicable Standards
ASTM D5706
Standard Test Method for determining extreme pressure properties of lubricating greases using a high-frequency, linear-oscillation test machine
ASTM D5707
Standard Test Method for measuring friction and wear properties of lubricating grease using a high-frequency, linear-oscillation test machine
ASTM D6425
Equivalent to DIN 51834 part 2, Standard test method for measuring the friction and wear properties of EP lubricating oils using the SRV test machine
ASTM D 7217
Standard Test Method for Determining Extreme Pressure Properties of Solid Bonded Films Using a High Frequency Linear Oscillation SRV Test Machine
ASTM D7420
Standard Test Method for Determining Tribomechanical Properties of Grease Lubricated Plastic Socket Suspension Joints Using a High-Frequency, Linear-Oscillation Test Machine
ASTM D7594
Standard Test Method for Determining Fretting Wear Resistance of Lubricating Greases Under High Hertzian Contact Pressures Using a High-Frequency, Linear-Oscillation Test Machine
DIN 51834-1
Tribological test in the translatory oscillation apparatus Part 1: General working principles
DIN 51834-2
Tribological test in the translatory oscillation apparatus Part 2: Standard test method for measuring the friction and wear properties of EP lubricating oils
DIN 51834-3
Tribological test in the translatory oscillation apparatus Determination of tribological behavior of materials in co-operation with lubricants
DIN 51834-4
Tribological test in the translatory oscillation apparatus Testing the tribological performance of gear and hydraulic fluids
DIN 62136-1
Textile machinery and accessories – Needle and sinker lubricating oils for weft knitting machines
ASTM D7421
Standard Test Method for Determining Extreme Pressure Properties of Lubricating Oils Using High-Frequency, Linear-Oscillation Test Machine
DIN 51834-5
Standardization project in the automotive sector
DIN 51834-6
Standard Test Method for Measuring Friction and Wear Properties of Lubricating Grease Using a High-Frequency, Linear-Oscillation Test Machine
DIN 51834-7
Standard Test Method for Determining Extreme Pressure Properties of Lubricating Greases Using a High-Frequency, Linear-Oscillation Test Machine
DIN 51834-8
Tribological test in translatory oscillation apparatus of bonded solid films DIN 51834-9 Evaluation of plastic greases with plastic specimens
Brožura RTEC - kompletní nabídka přístrojů a aplikací (1.1 MB) Brožura řada FFT (917.4 kB)
