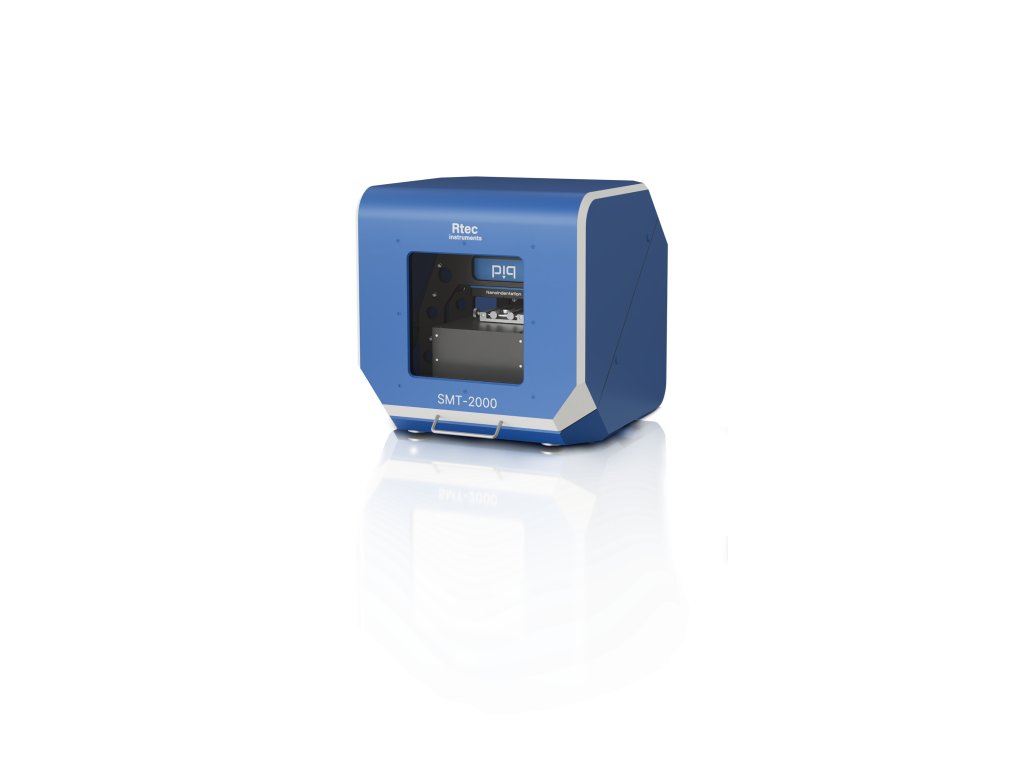

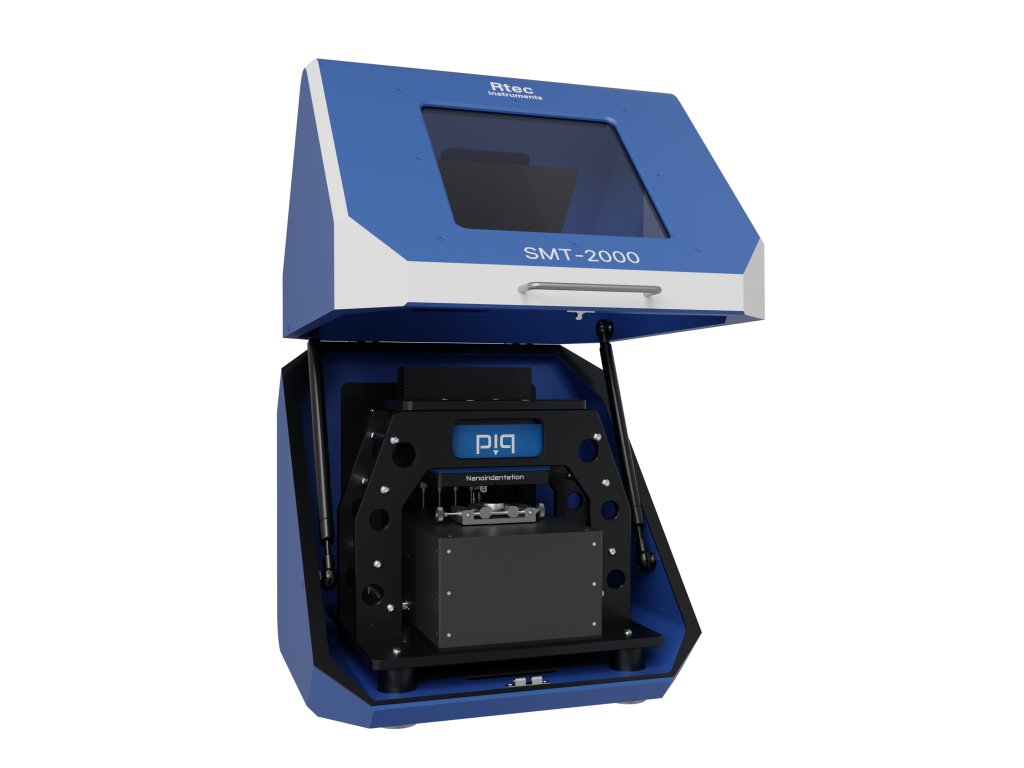

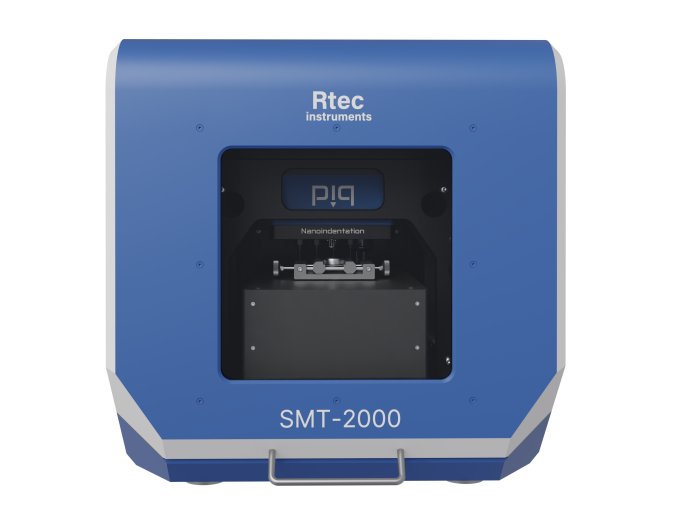

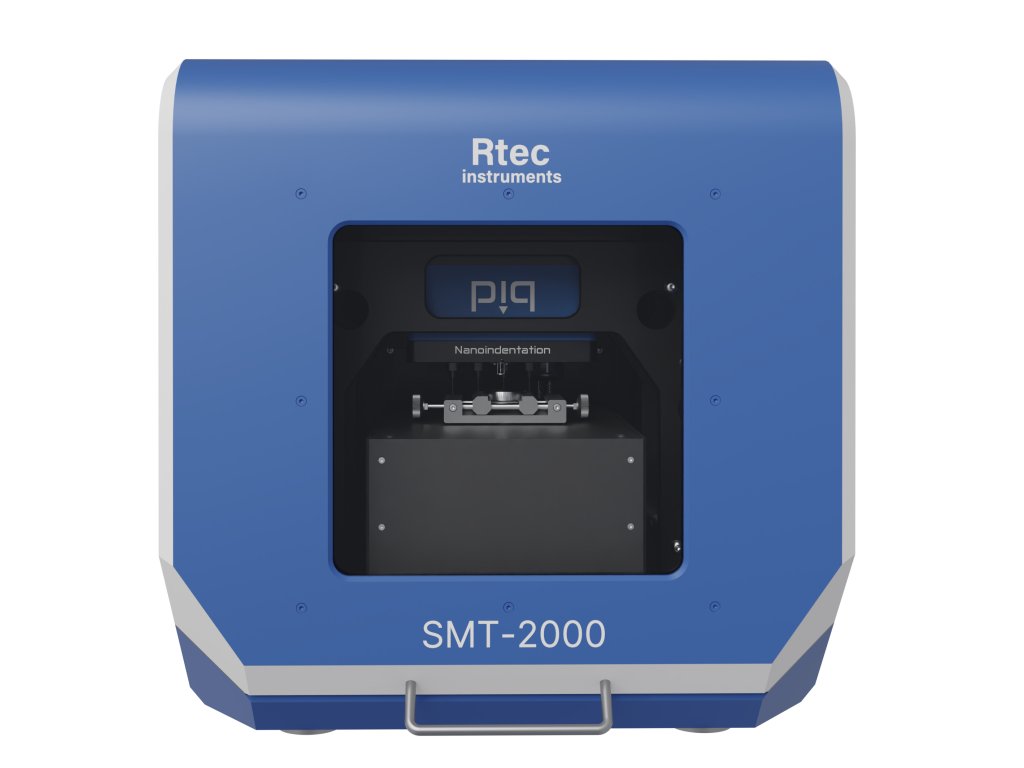

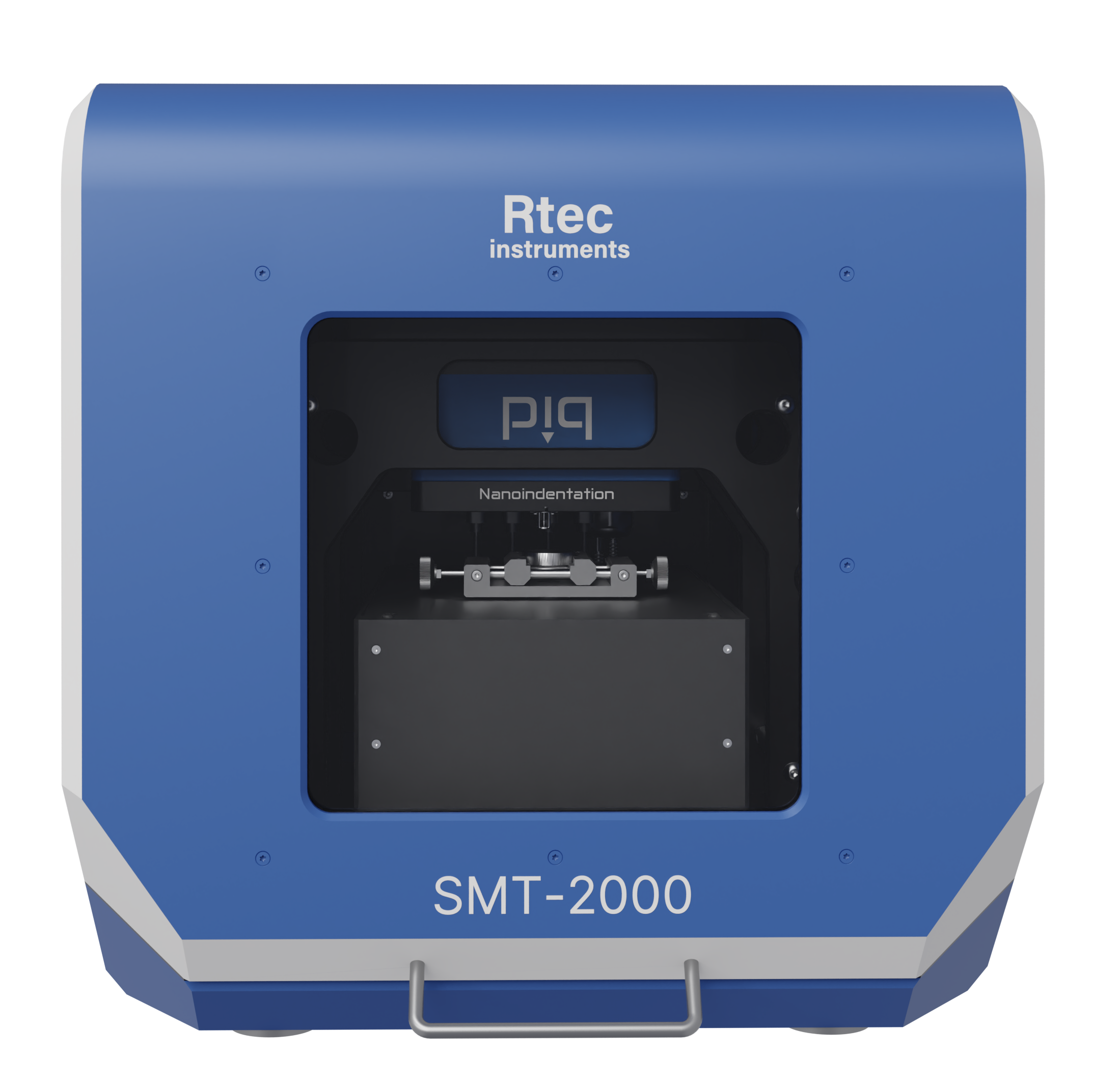

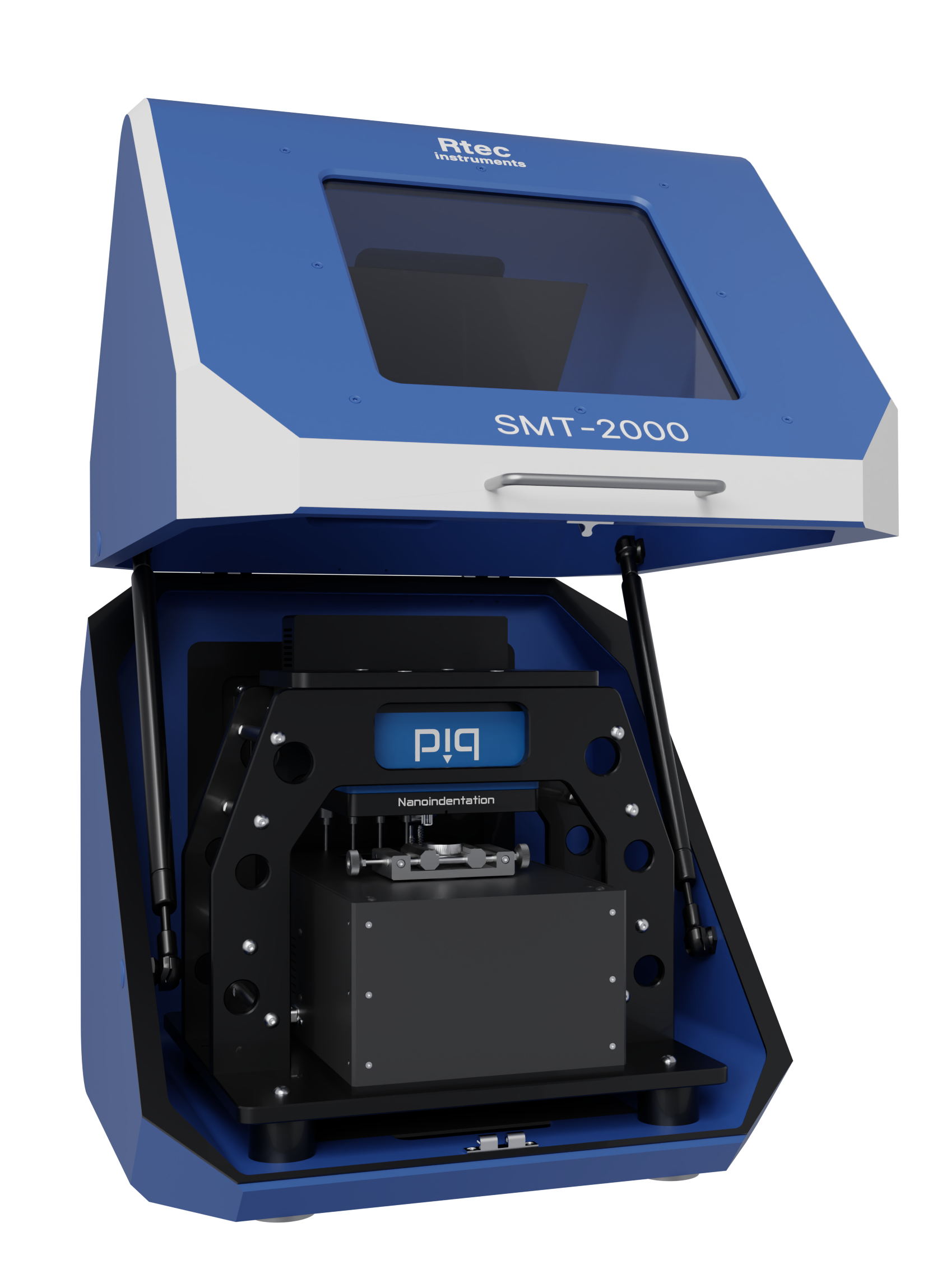

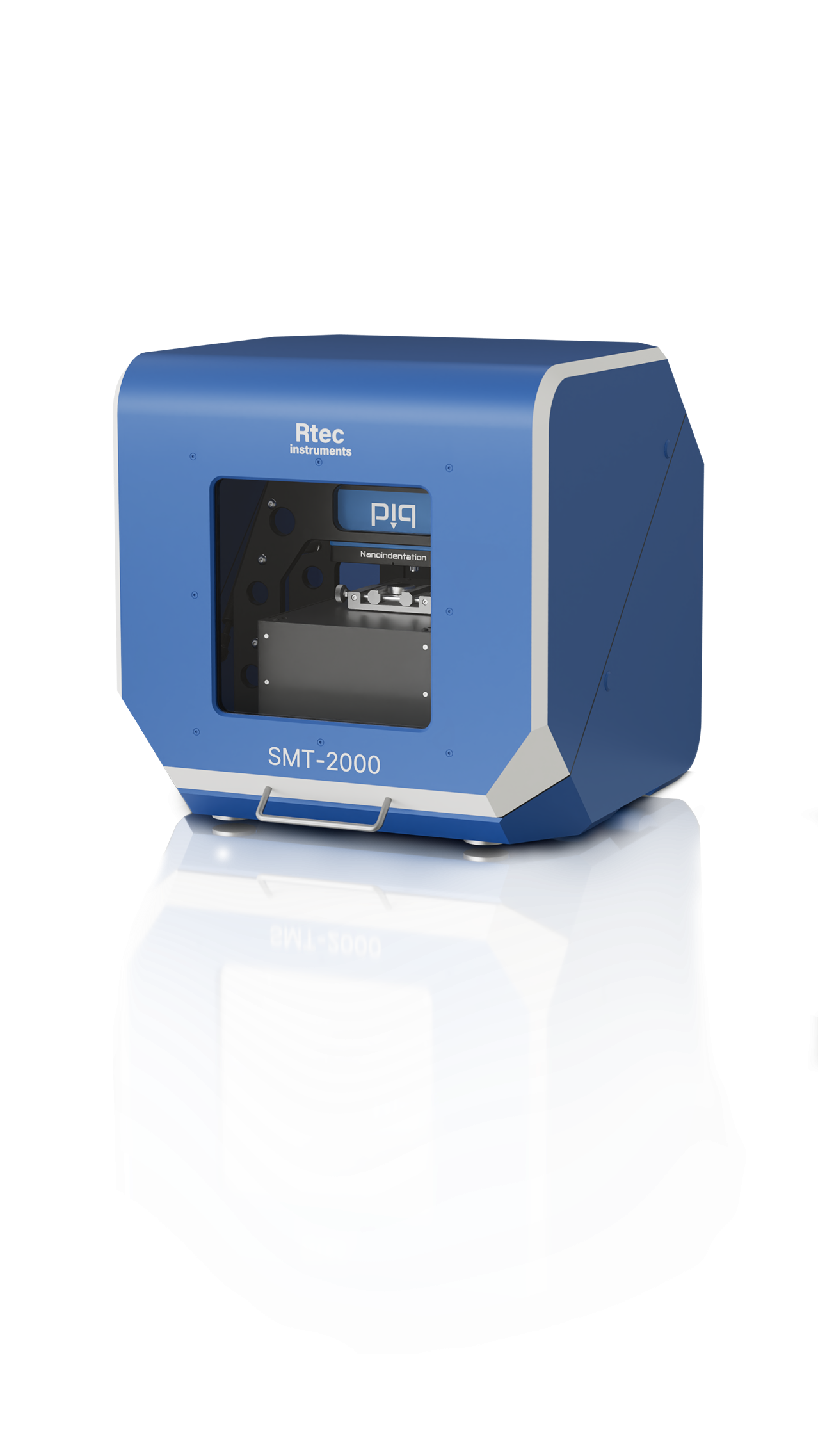

PiQ Nanoindentation Tester SMT-000

SCRETCHTESTER  SMT-5000

Stolní model pro vrypové a indentační zkoušky

BROŽURY, VIDEA

• Odolnost proti poškrábání

• Tvrdost a modul pružnosti

• Tření a opotřebení

• Inline 3D optické profilometry

ISO compliant instrumented Indentation and scratch tester. Patented, combined with an in-line 3D profilometer for comprehensive surface analysis.

POPIS PŘÍSTROJE:

• Unique combination of indentation, scratch, profilometer, film thickness testing on one automatic platform.
• Patented piezo and capacitive sensor technology.
• Patented image correlation between scratch data and 3D images.
• Nano, micro indentation and scratch tests on same platform using fast exchange heads.

The Surface Mechanical Tester SMT-5000 is a versatile instrument. It merges the ability to measure mechanical properties, such as hardness, modulus, scratch adhesion, film thickness, in addition to surface roughness and many others. All this power is consolidated in one single platform. To that end, the IST module provides both indentation and scratch. Combining piezo actuation and capacitive sensing technologies, the IST brings the highest precision measurements from nano to micro ranges.

Besides the IST module, the SMT-5000 incorporates spectral reflectance film thickness with 3D profilometry and environmental modules. All these capacities cater to demanding engineers and researchers in many fields.

A SURFACE MATERIAL TESTER LIKE NO OTHER

Customize the SMT-5000 To Fit Your Needs

Combination of Indentation and Scratch Module The IST module combines indentation and scratch testing capabilities in one single module.    Patented In-line Profilometer   3D profiler automatically combines high resolution surface topography with indentation and scratch data.    Lower automated XY Stage   The high precision cross-roller XY stage yields smooth and very accurate test positioning.

Non Destructive Film Thickness   Based on spectroscopic reflectance, film thickness measurement (FT-100) module provides a super fast and direct non contact film measurement. Upper Z Structure High precision multiple Z drives with high resolution encoders to move testing and inspection modules.    Platform   Open platform architecture for superior modular testing and ease of use.

Scratch Test   The SMT-5000 Scratch Tester performs scratch tests in nano, mico and macro force ranges. LEARN MORE	Indentation Test   Take a closer looks at the SMT-5000’s micro indentation capabilities LEARN MORE	Application Notes   Put it in action. The SMT-5000’s versatility fulfills all scratch applications.   READ MORE

 Instrumented Indentation Tester

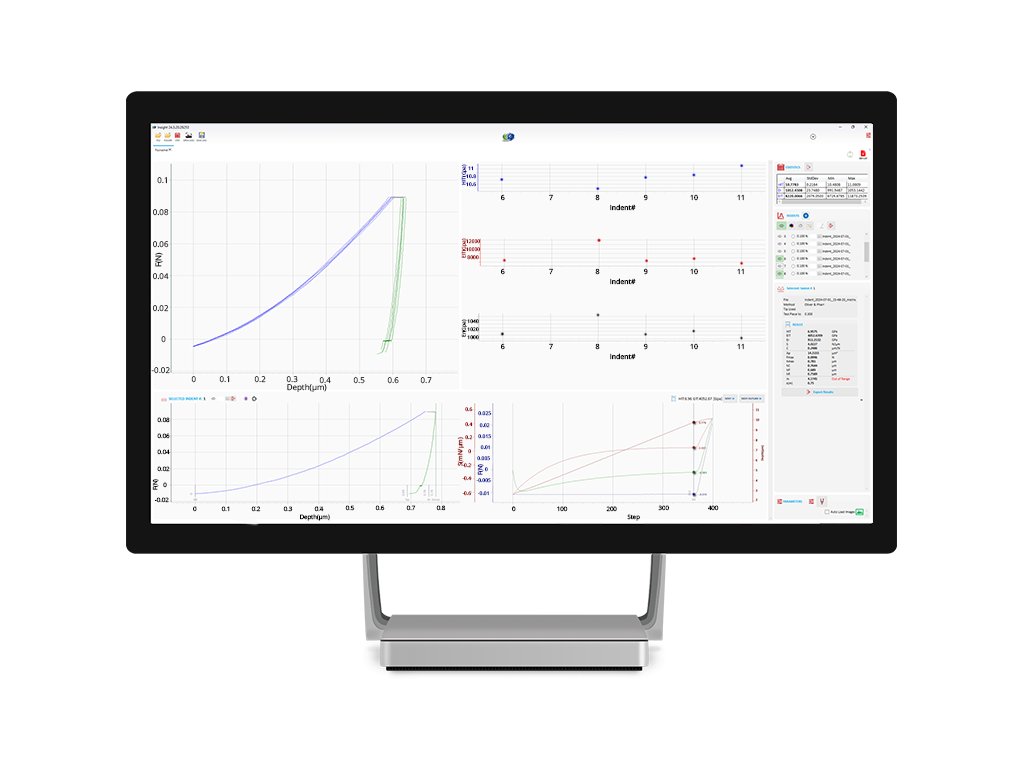

Automatic load and displacement curves, Hardness (Traditional and instrumented), Elastic Modulus, Creep, and many more calculations.   Easily interchangeable indentation head covering multiple load ranges from mN to 40 N Unmatched performance with patented capacitive sensor technology Berkovich, Vickers, Spherical, Cube Corner, Knoop, various diamond indenter tips, and more Standard Vickers hardness or other traditional micro indentation scales.

---

SCRATCH TESTING



Characterize coating adhesion, scratch resistance, scratch hardness and more.   The synchronization of scratch data and 3D imaging ( Patent US 10,024,776 B2) is a unique and novel tool to study surface deformation and failures.   Piezo actuator for precise down motion during scratch test. The best friction force sensitivity on the market owing to normal and tangential force sensors located in the head. Multiple testing ranges from nano to macro on one platform. Easily interchangeable scratch heads. Tests in various environments. (Temperature, humidity, corrosion and many more). Measurement on flat or curved surface Click here for few applications notes



---

AUTOMATIC STICHING OF IN-LINE 3D IMAGE





Scratch Data Visualization. Complete failure analysis and correlation to scratch data.



The complete 3D image of the scratch is obtained via automatic post-test imaging. The critical loads are easily positioned on the 3D panorama. In addition to the critical loads, the typical measurements enabled by this 3D imaging include scratch volume, penetration, residual deformation, roughness, and volume wear.





---

Load Profile and Custom Motions

Switch Quickly From Indenter to Scratch Tester

Load Profiles: constant, linear or user defined load profiles. The applied normal force and resulting friction forces measured using precise NIST traceable sensors.	Versatile XY Stage: The automatic  XY stage allows to perform multiple scratch or indentation on single or multiple samples automatically. Tests can be customize to achieve any motion profile such as straight, curved, circle, zigzag, and more.
Indentation With Rockwell Tip	Scratch With Cutting Tool

---

Non Destructive Film Thickness Measurement

Ultra fast coating thickness determination The film thickness measurement module uses spectral reflectance to obtain the thickness of a coated surfaces.   Extensive materials library (500+) Real-time, one-click measurement and analysis of thickness, n&k and roughness measurement Ease of use, no expert knowledge required Powerful analysis package scaling correction, multi-sample measurement, dynamic measurement.



PATENTED INTEGRATED IN-LINE 3D PROFILOMETER

The profilometer is optimized to image scratch and indentation marks with high resolutions.  Automatic multiple imaging modes selection  to image any sample surface – transparent, glass, mirror, rough, smooth, steep slope, and much more with ease.      Dark Field Mode   Allows detection of cracks at the surface with notable contrast    White Light Interferometer Mode   Allows high resolution images of flat surfaces    Spinning Disk Confocal Microscope Mode   Measures steep slopes,  transparent, dark or rough surfaces    Bright Field Mode   2D profiles with high resolution and real colors

Sensors and Chambers

---

Correlation of Deformation, Failure, and Surface Morphology Data

Pre & Post Test Image   Automatic surface deformation assessment with the comparison of before and after 3D images of the surface.  Scratch Test   Single or multiple scratches can be performed using predefined recipes.  Continuous Cross Profiler Analysis   Cross profiles measurements are available anywhere along the scratch.  Report   A simple and customizable report is generated with 3D images correlated to scratch data. Moreover, each critical load is presented with separate zoomed images. Additionally, other measures such as friction, roughness, residual depth, volume wear and permanent deformation are also provided.
