Air Jet AJ-1000 TESTER EROZE

TESTER EROZE Air Jet - AJ-1000

Tester eroze materiálu

BROŽURY, VIDEA

• Eroze povlaku/materiálu

• Zkouška při vysoké teplotě

• Abrazivní média

• Řízená rychlost/úhel

POPIS PŘÍSTROJE:

• Conforms to ASTM G76, ASTM G211-14
• Automatic in-line sample and particle velocity measurement
• Open platform allows mounting real samples and test coupons
• Fully automatic – run and test data with a click of a button

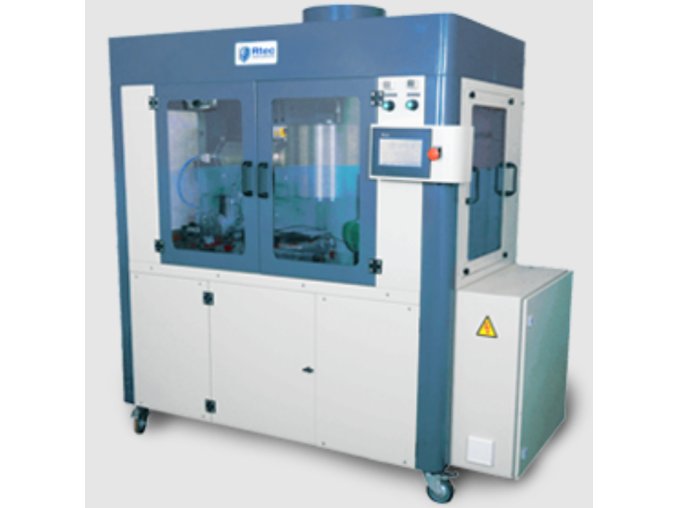

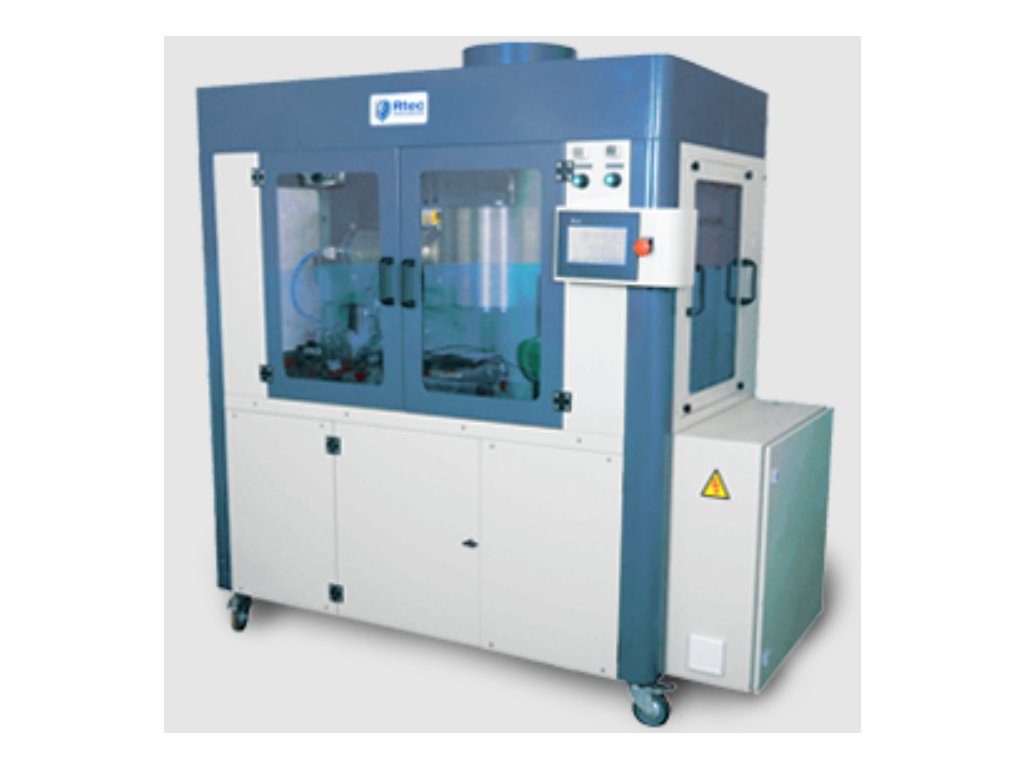

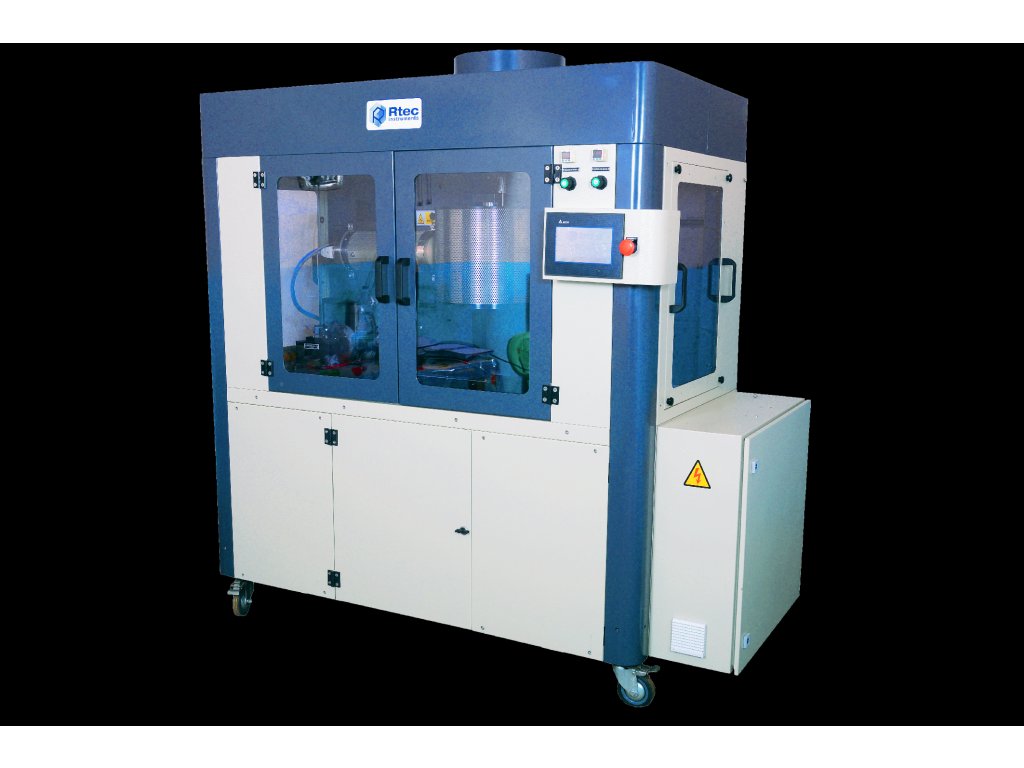

Perform repeated impact tests with Rtec Instruments’ Air Jet Erosion Tester, the AJ-1000. To do this, the tester utilizes a jet of gas loaded with abrasive particles. As a result, the AJ-1000 can measure samples’ precise erosion. Additionally, the machine comes with temperature control up to 1200°C and closed-loop temperature. Furthermore, the AJ-1000 ranks the erosion of various materials and coatings. It does this by subjecting samples to different abrasive particles of various shapes, sizes, temperatures, and impact speeds.

AJ-1000 FEATURES

Automated Positioning Stage   An automatic stage moves the sample for ease of use. Meanwhile, the velocity measurement system provides precise measurements.   Uniform Temperature   The AJ-1000 can go up to 1200 °C temperature (multiple ranges available). As a result, study the effect of temperature with in-line temperature monitoring and PID closed loop control.

Closed loop High Speed Double Disc Velocity Measurement   The time-of-flight of the particles is determined over a controlled path length between two rotating disks.  Servo controlled rpm, high speed double disc velocity for precise process control in real time.   Mixing and Impingement Angle   Software parameters control the mixing of hot air and erodent particles. In addition, the angles of impingement change to various positions – from 0 to  90 degrees.

Erodent Particle Feed System Stainless steel hoppers and vibrator with programmed motorized screw conveyor.  Erodent feed rate– 1 -10 gm/min (higher range available) Particle hopper capacity– up to 3 liter (multiple ranges) Particle speed– 30-200 m/sec (multiple ranges available)

A LOOKINSIDE THE AJ-1000

Each AJ-1000 includes an air pressure controller and a pressure gauge. Standard or user selected abrasive media are capable of evaluation.

Internal	Erosion Sample	High Temperature Furnace
