Popis
Tvrdoměr Q60/Q150 varianta RCS
Q150 1 kg - 150 kg
Q60 1 kg - 60 kg
ZKUŠEBNÍ METODA HRC NEBO HBT 2.5
l Extremely fast hardness testing cycle - under 3 seconds
l Ultra-modern technology, innovative design
l Innovative Siemens S7 controls

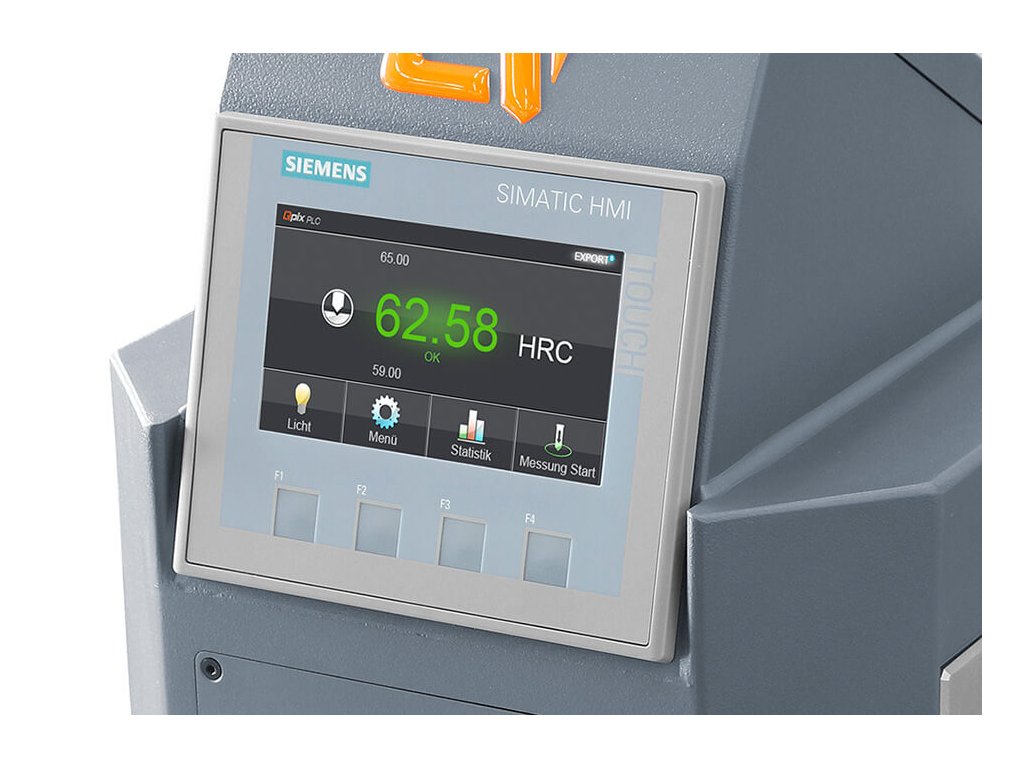

l Siemens 4“ touch display
l Work room illumination
l Data output via RS232 interface
l 2 load ranges available: HRC or HBT 2.5/62.5 (more on request)
l Snug-fi t roller-bearing spindle guide
l Can be integrated into production lines for automation
PARAMETRY:
| Test method Q150/Q60 | HRC / HBT 2.5 |
| Test force area Q150/Q6 | 150 kg (1471,5 N) / 62,5 kg (613,1 N) |
| Height adjustment | handwheel |
| Test height | horizontal reach | 180 mm / 180 mm |

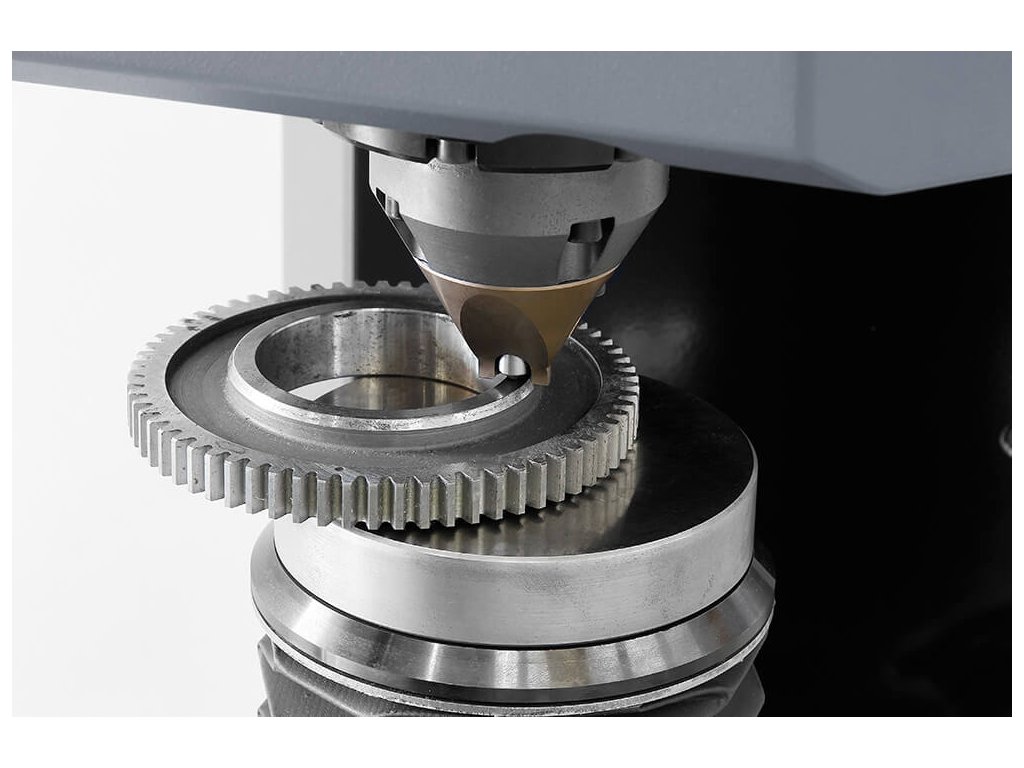

| Test anvil | Ø 100 mm |
| Weight of basic device | 120 kg |
| Interfaces | 1 x RS232 C, 1 x RJ45 (Ethernet) |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power input | ~ 360 W |
| Accessories / Options | |
| General | Penetrator (Rockwell, Brinell) |
| Inline - solution | to be agreed |
| Options | Customised devices, customised test anvil, pro bus, sorting lamps, flashlight |
Tvrdoměr Q60/Q150 varianta RCS (829.7 kB)
VIDEA:
| Test method Q150/Q60 | HRC / HBT 2.5 |
| Test force area Q150/Q6 | 150 kg (1471,5 N) / 62,5 kg (613,1 N) |
| Height adjustment | handwheel |
| Test height | horizontal reach | 180 mm / 180 mm |
| Test anvil | Ø 100 mm |
| Weight of basic device | 120 kg |
| Interfaces | 1 x RS232 C, 1 x RJ45 (Ethernet) |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power input | ~ 360 W |
| Accessories / Options | |
| General | Penetrator (Rockwell, Brinell) |
| Inline - solution | to be agreed |
| Options | Customised devices, customised test anvil, pro bus, sorting lamps, flashlight |
